Spesifikasi
Product Name

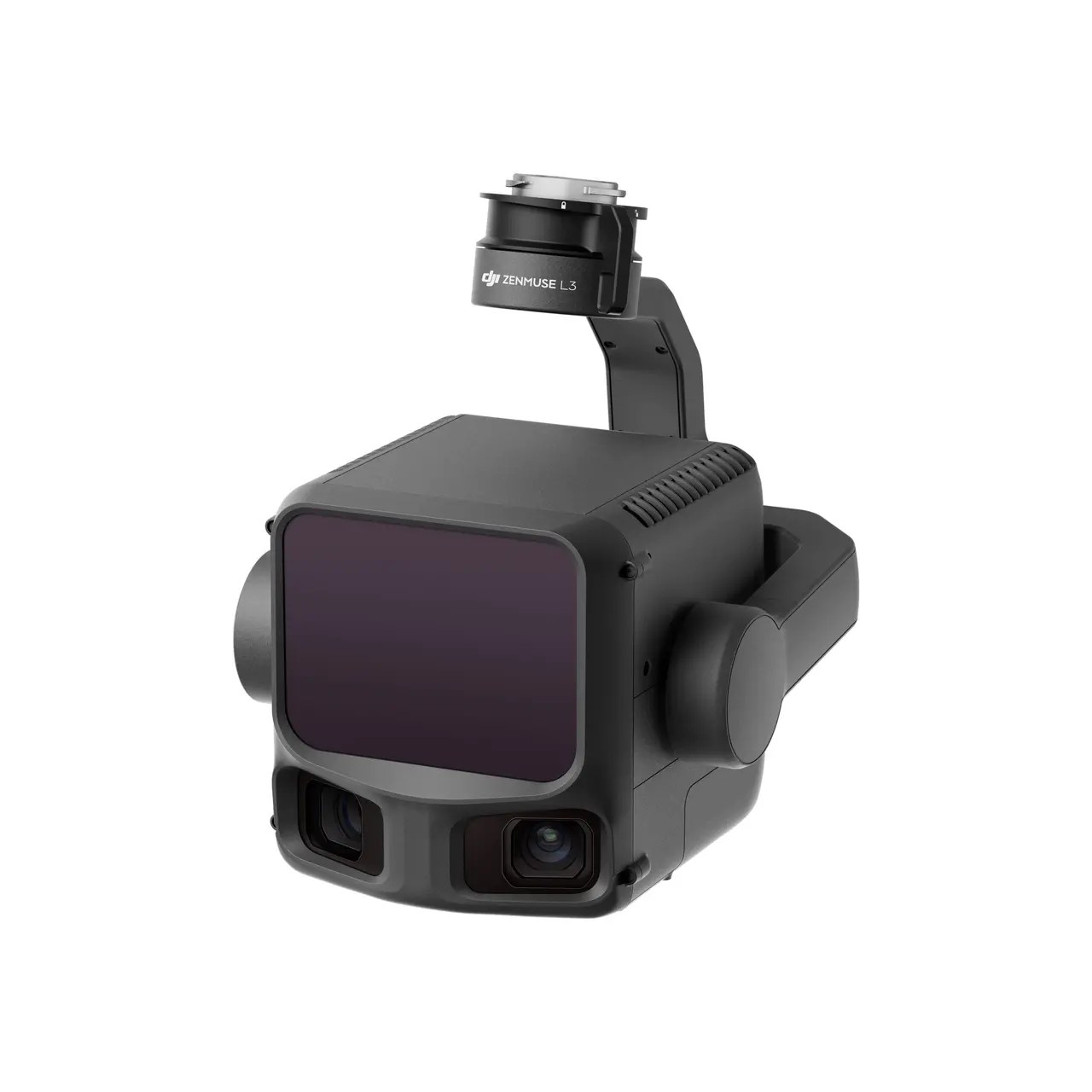

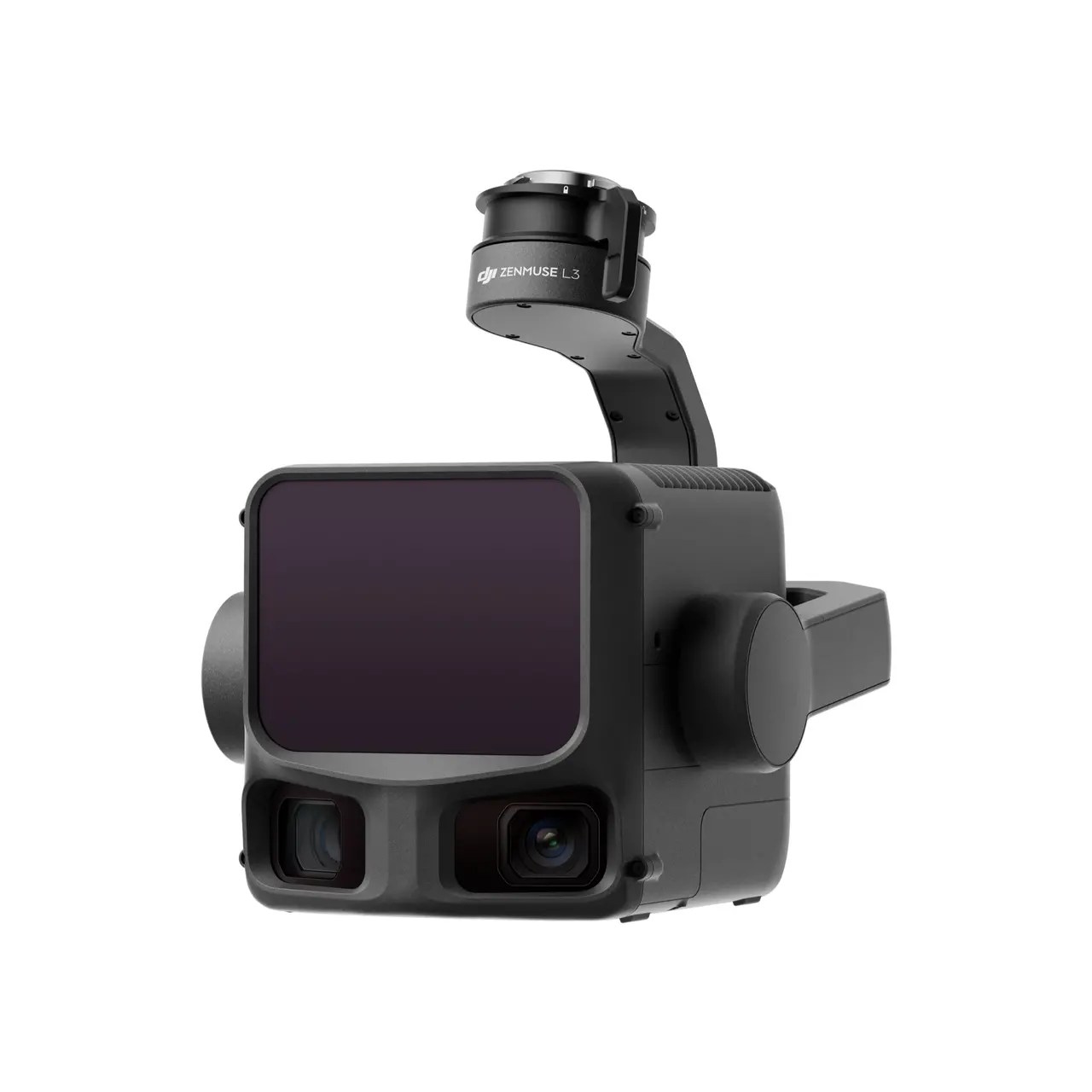

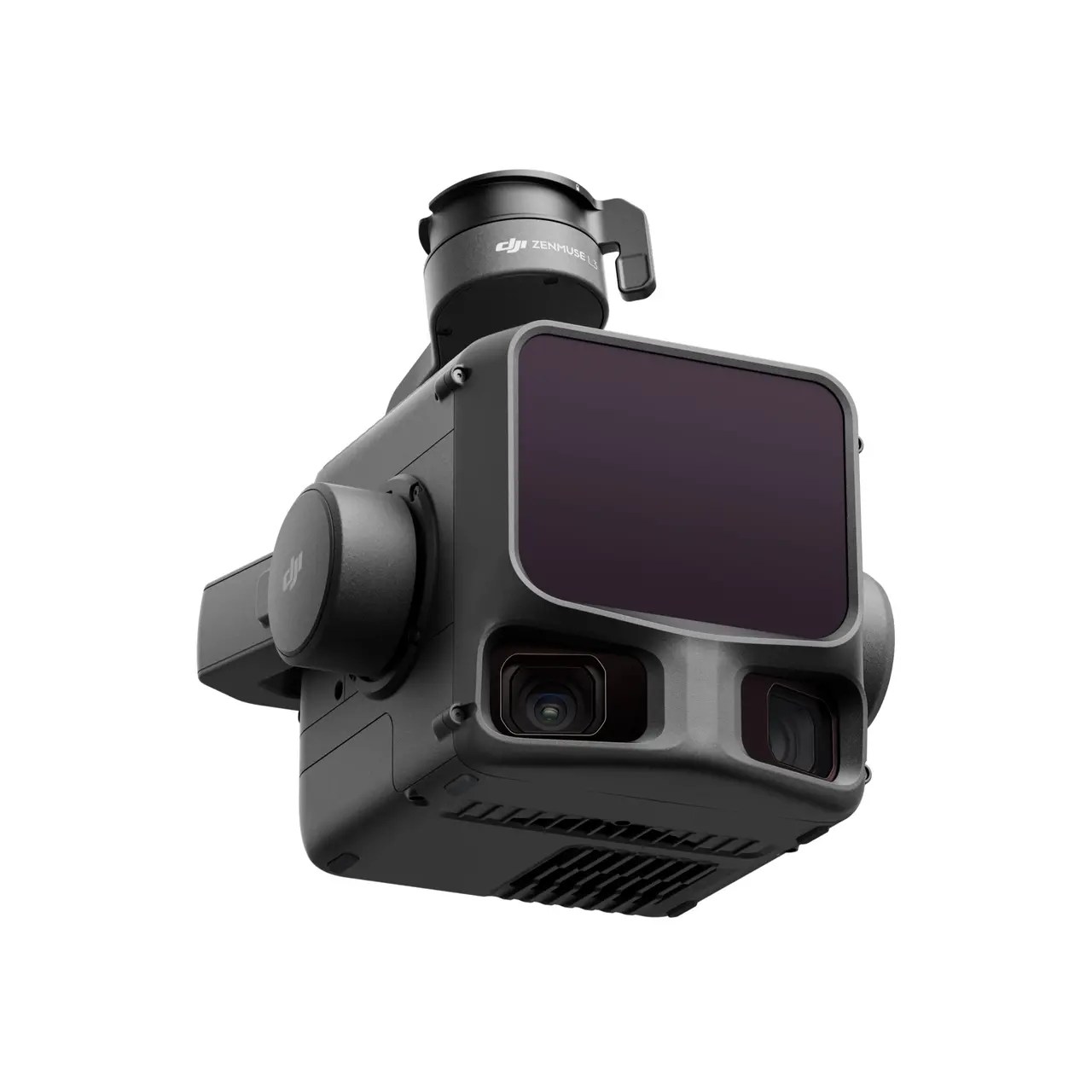

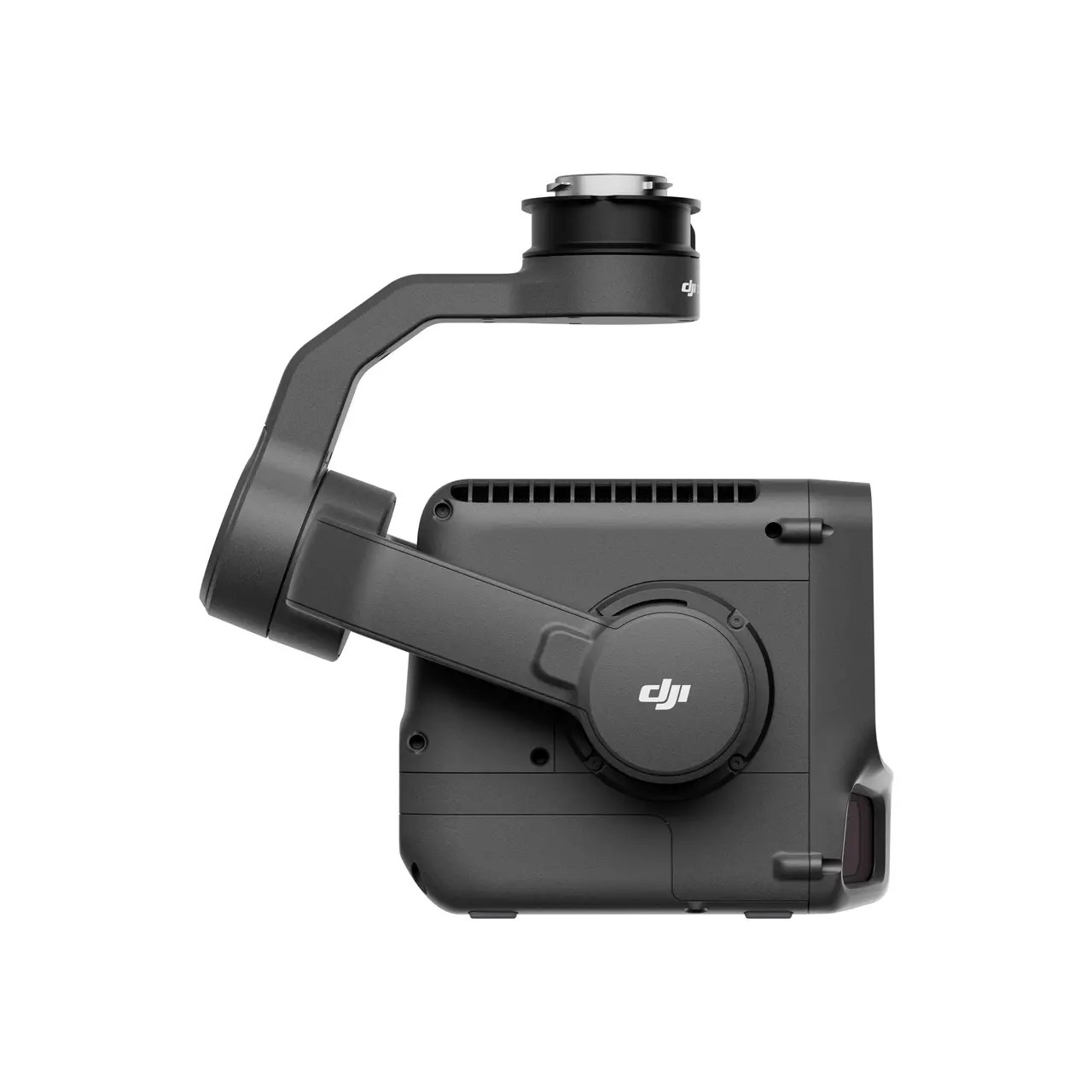

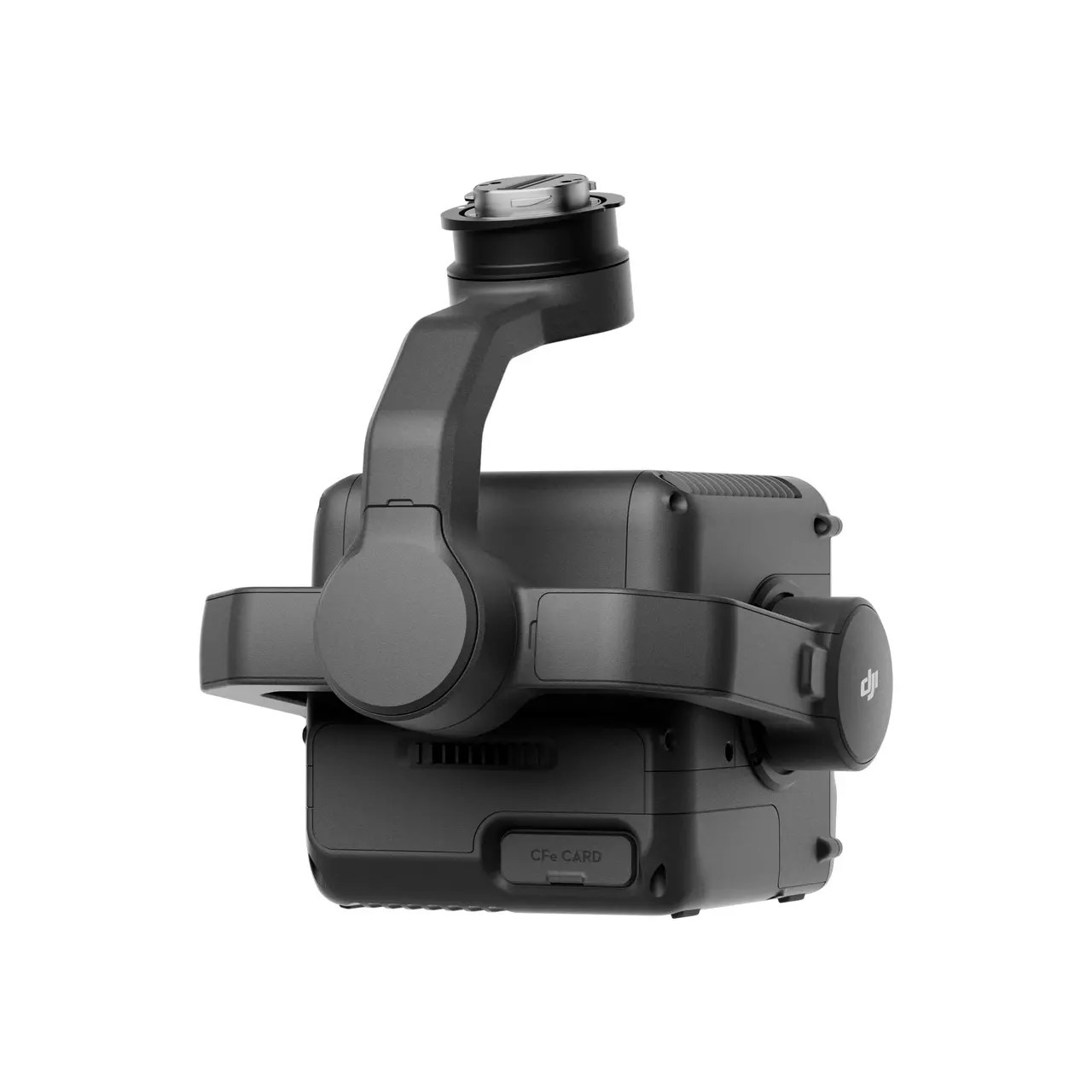

- Zenmuse L3
Point Cloud System Accuracy
- At 120m Flight Altitude:
Vertical Accuracy: 3 cm (RMSE)
Horizontal Accuracy: 4 cm (RMSE) - At 300m Flight Altitude:
Vertical Accuracy 5 cm (RMSE)
Horizontal Accuracy: 7.5 cm (RMSE)
Point Cloud Thickness
- 1.2 cm@1ฯ (120m nadir flight altitude)
- 2 cm@1ฯ (300m nadir flight altitude)
Combined Horizontal FOV (Dual RGB Mapping Cameras)
- 107ยฐ
RGB Ground Sampling Distance (GSD)
- Average Value: 3 cm (300m nadir flight altitude)
Weight
- 1.60 kg (without single gimbal connector)
Dimensions
- 192ร162ร202 mm (LรWรH)
Power
- 64 W (typical)
- 100 W (max)
Supported Aircraft
- DJI Matrice 400 (requires the Zenmuse L3 single gimbal connector)
Ingress Protection Rating
- IP54
Operating Temperature
- -20ยฐ to 50ยฐ C (-4ยฐ to 122ยฐ F)
Storage Temperature
- -40ยฐ to 70ยฐ C (-40ยฐ to 158ยฐ F)
