base-station-terbaik-emlid-gnss receiver pemetaan model emlid base-station-terbaik-emlid-gnss receiver pemetaan model emlid REACH RS2 Multi-band RTK GNSS receiver with centimeter precision
For surveying, mapping and navigation.
Comes with a mobile app.
CONTACT US LEARN MORE
REACH RS+ Single-band RTK GNSS receiver with centimeter precision
For surveying, mapping and navigation.
Comes with a mobile app.
CONTACT US LEARN MORE
Slide REACH M2 RTK GNSS Modules for UAV mapping
Positioning with centimeter accuracy. in RTK & PPK
Dual-band. Baseline up to 60 km
CONTACT US LEARN MORE
Slide REACH M+ RTK GNSS Modules for UAV mapping
Positioning with centimeter accuracy. in RTK & PPK
Single-band. Baseline up to 20 km
CONTACT US LEARN MORE

RELIABLE SOLUTIONS FOR QUALITY SURVEYING

LEADING RTK GNSS BASE STATIONS AND DRONE MODULES

Emlid produces affordable GNSS modules and receivers suitable for RTK and PPK. Highly accurate Reach receivers can work with signals from all the main satellite systems: GPS, GLONASS, as well as BeiDou, QZSS, and Galileo.

Emlid RTK receivers and modules obtain corrections over LoRa radio, Bluetooth, or NTRIP, and can be additionally configured with third party communications devices, with corrections data exported in industry-standard formats.

Emlid products are designed to work right out of the box and are suitable for experienced and beginner surveyors. Emlid receivers are well optimized for drone requirements, and have straightforward compatibility with DJI survey drones, as well as open source VTOL drone platforms of all kinds.

REACH RS2

MULTI-BAND RTK GNSS RECEIVER

Multi-band RTK GNSS receiver with centimeter precision for survey and mapping.
– Baseline up to 100 km
– Update rate 10 Hz

Reach RS2 gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode. Built with high quality materials and IP67 rating for rugged use in intense conditions, the Emlid Reach RS2 is an industry standard for surveying – complete with the ReachView 3 app for both iOS and Android, which makes data collection easy and efficient.

REACH RS+

SINGLE-BAND RTK GNSS RECEIVER

Single-band RTK GNSS receiver with centimeter precision for survey, mapping and navigation.
Max distance from a base:
– 10 km in RTK
– 20 km in PPK

Engineered to be tough, Reach RS+ is designed to work even in the most challenging environments. Dense forests, mountains, frost, heat, and water: Reach RS+ can handle it all. With IP67 water protection making it fully waterproof up to 1m depth and 30 hour LiFePO4 battery, the Reach RS+ is a high quality, highly  affordable RTK GNSS receiver ideal for a wide range of survey and positioning requirements across Indonesia.

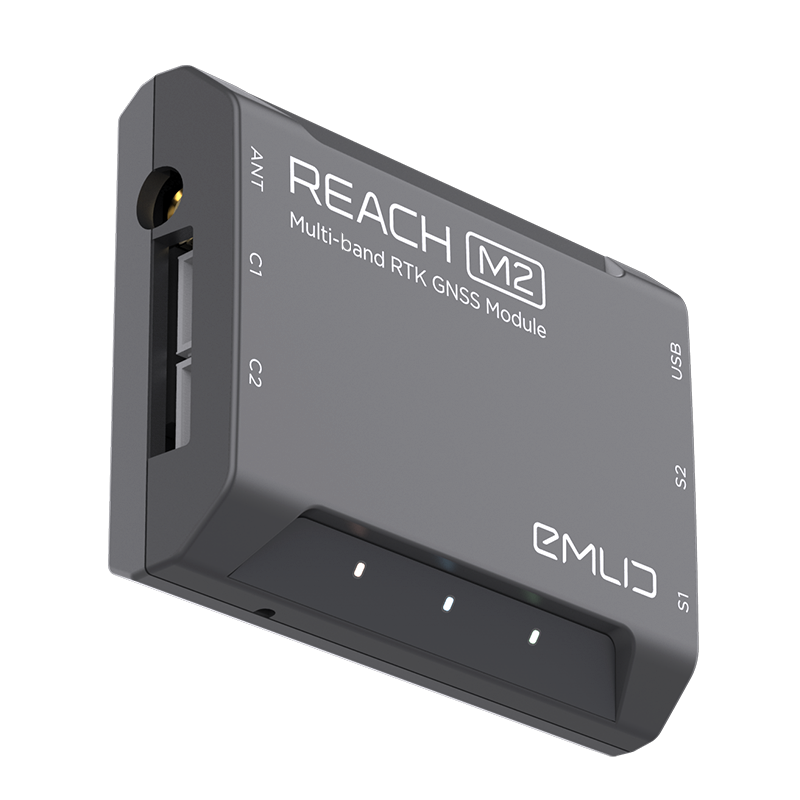

REACH M2

MULTI-BAND RTK GNSS modules for DRONE SURVEY AND mapping

Multi-band positioning with centimeter accuracy in RTK and PPK, for precise drone mapping with less GCPs.

Reach M2 modules directly connect to the drone camera hot shoe port, which is synced with the camera shutter: this enables Reach M2 to log time and coordinates of each photo with the highest possible level of accuracy – less than a microsecond, for precise georeferencing.

– RTK Up to 60 km
– PPK Up to 100 km
– Time to Fix: 5 seconds
– RINEX logging update rate up to 20 Hz

REACH M+

SINGLE-BAND RTK GNSS modules for DRONE SURVEY AND mapping

Single-band positioning with centimeter accuracy in RTK and PPK, for precise drone mapping with less GCPs.

Reach M+ modules directly connect to the drone camera hot shoe port, which is synced with the camera shutter: this enables Reach M+ to log time and coordinates of each photo with the highest possible level of accuracy – less than a microsecond, for precise georeferencing.

– RTK Up to 10 km
– PPK Up to 20 km
– Time to Fix: 1-2 mins
– RINEX logging update rate up to 14 Hz
