Deskripsi

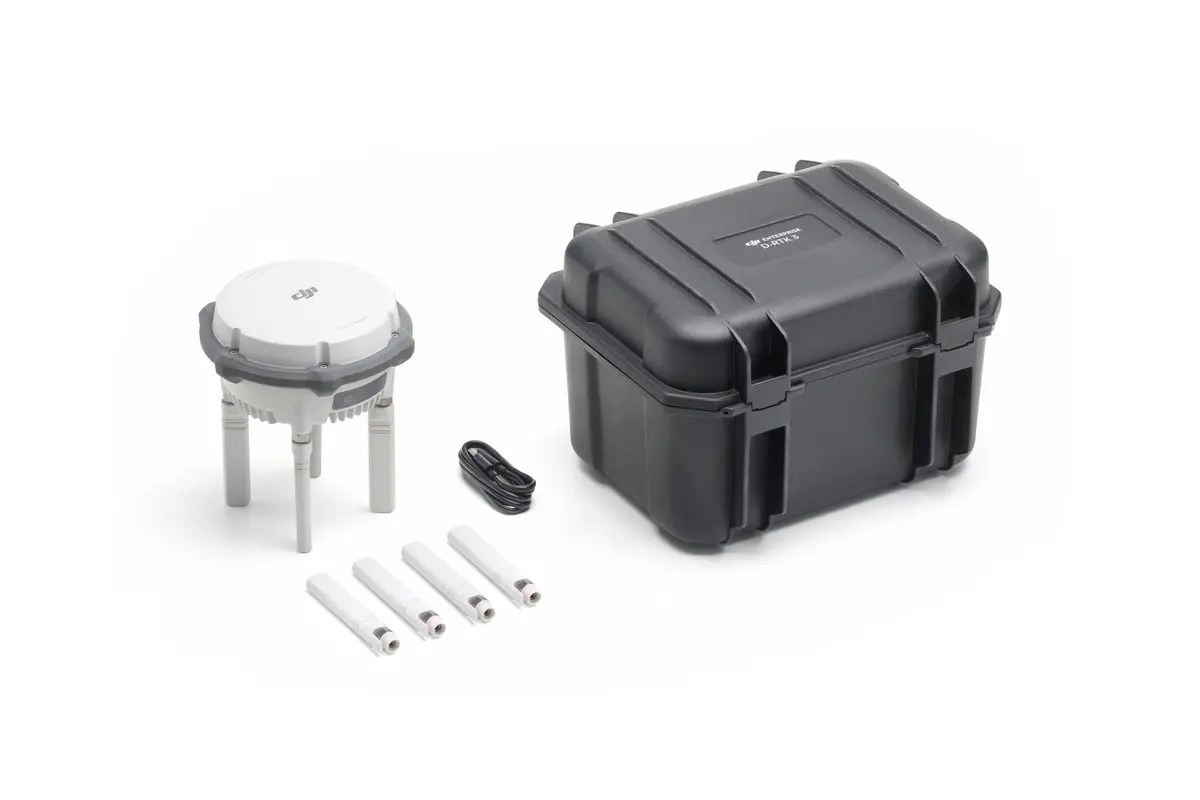

In The Box
- D-RTK 3 Multifunctional Station ร 1
- Spare OcuSync Directional Antennas ร 4
- USB-A to USB-C Cableร 1
Specifications
- GNSS Frequency
- GPS: L1C/A, L2C, L5
- BDS: B1I, B2I, B3I, B1C, B2a, B2b
- Galileo: E1, E5a, E5b, E6
- GLONASS: L1, L2
- QZSS: L1C/A, L2C, L5
- L-Band
- Rover Station Mode Accuracy
- Static Measurement
- Horizontal: 0.8 cm + 1 ppm (RMS)
- Vertical: 1.5 cm + 1 ppm (RMS)
- Tilt Measurement
- Angle Range: 0ยฐto 60ยฐ
- Horizontal: 8 mm + 0.7 mm/ยฐ tilt (accuracy <2 cm within 30ยฐ)
- Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)
FCC:
- 15 km between the aircraft and the relay station
- 1 km between the relay station and the remote controller
SRRC:
- 12 km between the aircraft and the relay station
- 1 km between the relay station and the remote controller
CE:
- 8 km between the aircraft and the relay station
- 300 m between the relay station and the remote controller
- Protection Rating: IP67 (station only)
Diameter: 163 ร 89 mm (without OcuSync Directional Antennas)
Weight: 1.26 kg
